Represents an entire C++ program. More...

#include <cppprog.h>

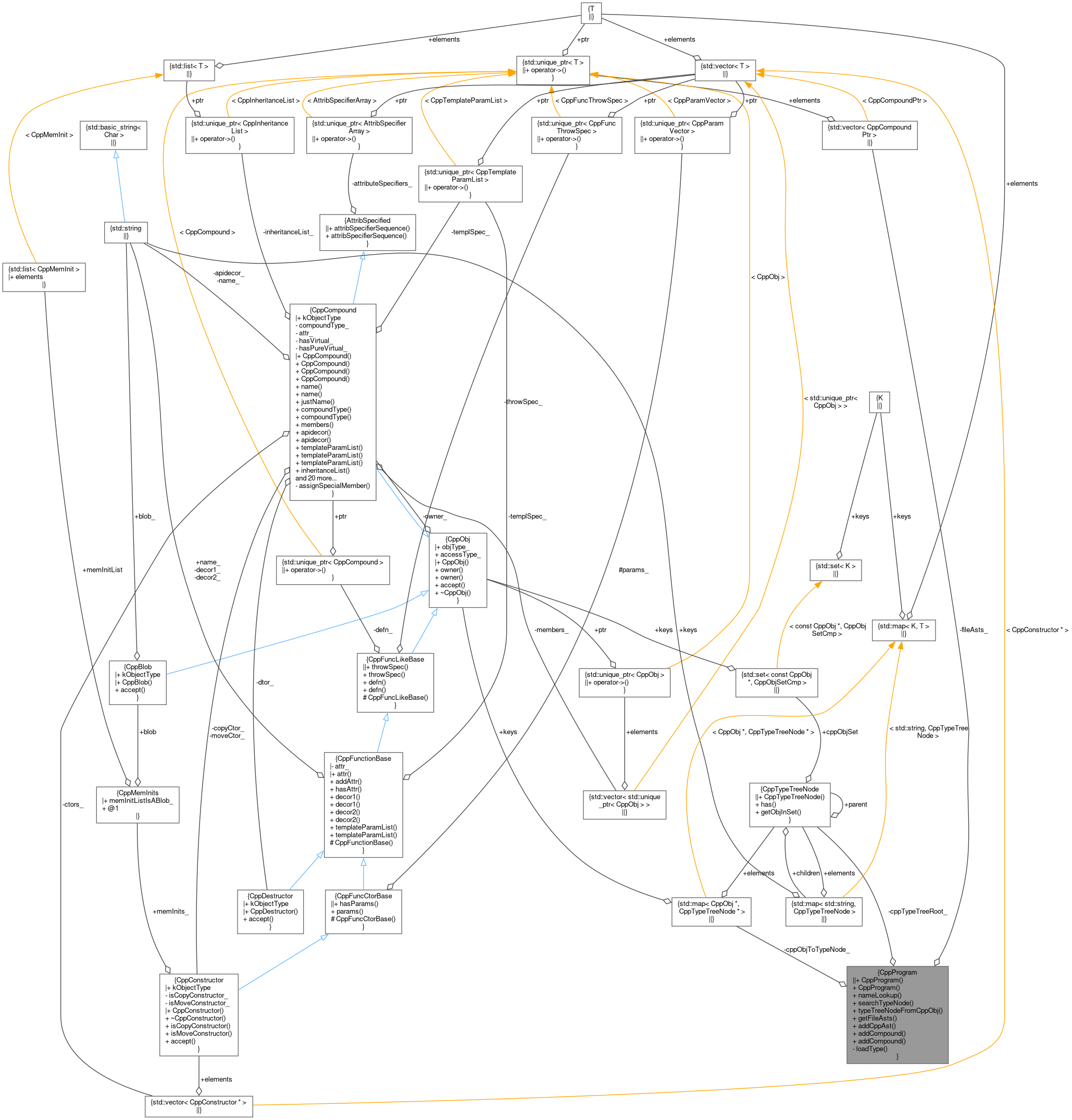

Collaboration diagram for CppProgram:

Public Member Functions
	CppProgram (const std::string &folder, CppParser parser=CppParser(), const CppProgFileSelecter &fileSelector=selectHeadersOnly)

	CppProgram (const std::vector< std::string > &files, CppParser parser=CppParser())

const CppTypeTreeNode *	nameLookup (const std::string &name, const CppTypeTreeNode *beginFrom=nullptr) const
	Finds the CppTypeTreeNode object corresponding to a given name. More...

const CppTypeTreeNode *	searchTypeNode (const std::string &name, const CppTypeTreeNode *parentNode=nullptr) const
	Searches down (in breadth first manner) the CppTypeTreeNode object corresponding to a given name. More...

const CppTypeTreeNode *	typeTreeNodeFromCppObj (CppObj *cppObj) const

CppCompoundArray &	getFileAsts ()

void	addCppAst (CppCompoundPtr cppAst)
	Adds a new file AST to this program. More...

void	addCompound (CppCompound compound, CppCompound parent)

void	addCompound (CppCompound compound, CppTypeTreeNode parentTypeNode)

Private Types
using	CppObjToTypeNodeMap = std::map< CppObj , CppTypeTreeNode >

Private Member Functions
void	loadType (CppCompound cppCompound, CppTypeTreeNode typeNode)

Private Attributes
CppCompoundArray	fileAsts_
	Array of all top level ASTs corresponding to files. More...

CppTypeTreeNode	cppTypeTreeRoot_
	Repository of all compound objects arranged as type-tree. More...

CppObjToTypeNodeMap	cppObjToTypeNode_

Detailed Description

Represents an entire C++ program.

Definition at line 58 of file cppprog.h.

Member Typedef Documentation

◆ CppObjToTypeNodeMap

using CppProgram::CppObjToTypeNodeMap = std::map<CppObj*, CppTypeTreeNode*>

private

Definition at line 115 of file cppprog.h.

Constructor & Destructor Documentation

◆ CppProgram() [1/2]

CppProgram::CppProgram	(	const std::string &	folder,
		CppParser	parser = `CppParser()`,
		const CppProgFileSelecter &	fileSelector = `selectHeadersOnly`
	)

Definition at line 50 of file cppprog.cpp.

◆ CppProgram() [2/2]

CppProgram::CppProgram	(	const std::vector< std::string > &	files,
		CppParser	parser = `CppParser()`
	)

Definition at line 37 of file cppprog.cpp.

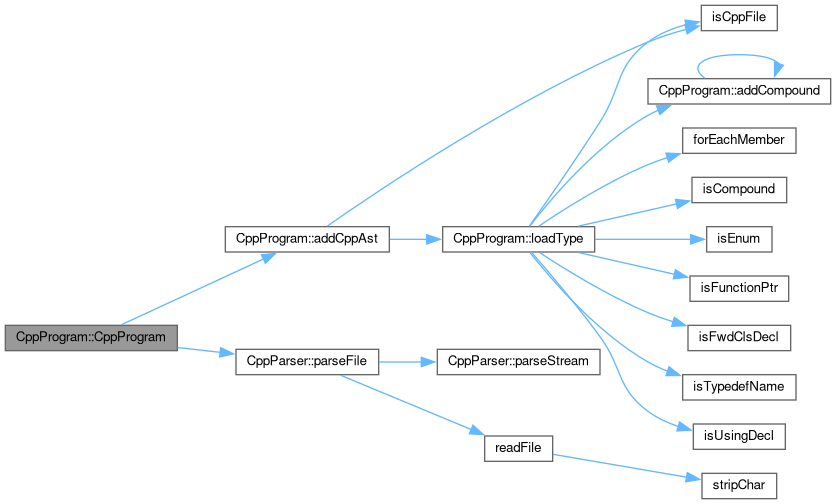

Here is the call graph for this function:

Member Function Documentation

◆ addCompound() [1/2]

void CppProgram::addCompound	(	CppCompound *	compound,
		CppCompound *	parent
	)

Definition at line 74 of file cppprog.cpp.

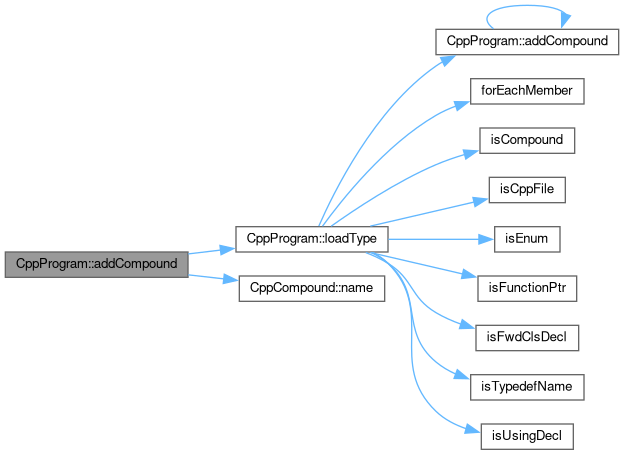

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addCompound() [2/2]

void CppProgram::addCompound	(	CppCompound *	compound,
		CppTypeTreeNode *	parentTypeNode
	)

Definition at line 63 of file cppprog.cpp.

Here is the call graph for this function:

◆ addCppAst()

void CppProgram::addCppAst ( CppCompoundPtr cppAst )

Adds a new file AST to this program.

Warning: It is a no-op if cppAst is not of CppCompoundType::kCppFile type.

Definition at line 55 of file cppprog.cpp.

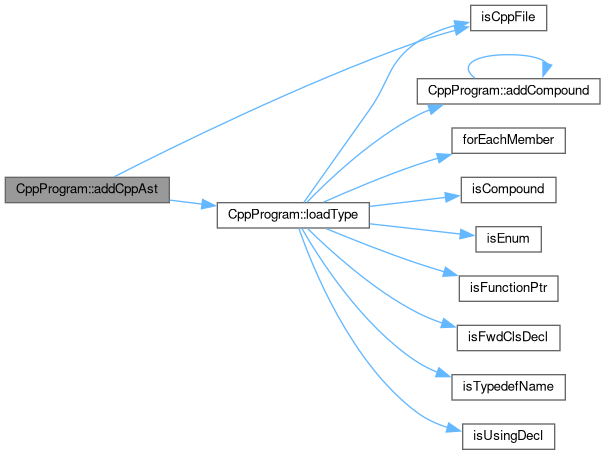

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFileAsts()

CppCompoundArray & CppProgram::getFileAsts ( )

inline

Returns: An array of CppCompound each element of which represents AST of a C++ file.

Definition at line 122 of file cppprog.h.

◆ loadType()

void CppProgram::loadType	(	CppCompound *	cppCompound,
		CppTypeTreeNode *	typeNode
	)

private

Definition at line 81 of file cppprog.cpp.

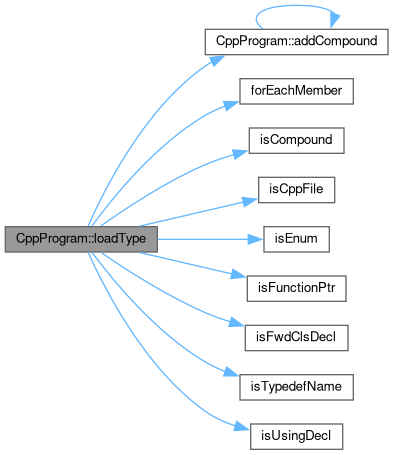

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nameLookup()

const CppTypeTreeNode * CppProgram::nameLookup	(	const std::string &	name,
		const CppTypeTreeNode *	beginFrom = `nullptr`
	)		const

Finds the CppTypeTreeNode object corresponding to a given name.

Parameters

name	Name of type for which CppTypeTreeNode needs to be found.
beginFrom	CppTypeTreeNode object from where the find should begin. It can be nullptr, in that case the global space is looked for the name.

Returns: CppTypeTreeNode corresponding to given name.

Note: Name can contain scope resolution operator(::).

Remarks

The search moves upward. E.g. if beginFrom does not contain the type whose name is name then it is searched in parent node and keeps moving upward till a match is found or type-hierarchy ends without a match.
It is supposed to work exactly like how compiler looks for name.

Definition at line 141 of file cppprog.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ searchTypeNode()

const CppTypeTreeNode * CppProgram::searchTypeNode	(	const std::string &	name,
		const CppTypeTreeNode *	parentNode = `nullptr`
	)		const

Searches down (in breadth first manner) the CppTypeTreeNode object corresponding to a given name.

Parameters

name	Name of type for which CppTypeTreeNode needs to be found.
parentNode	CppTypeTreeNode object from where the search should begin. It can be nullptr, in that case search starts from the top.

Returns: CppTypeTreeNode corresponding to given name.

Note: Name should NOT contain scope resolution operator(::).

Remarks: The search moves downward. E.g. if parentNode does not contain the type whose name is name then it is searched in child nodes and keeps going downwards till a match is found or type-hierarchy ends without a match.

Definition at line 181 of file cppprog.cpp.

Here is the call graph for this function:

◆ typeTreeNodeFromCppObj()

const CppTypeTreeNode * CppProgram::typeTreeNodeFromCppObj ( CppObj * cppObj ) const

inline

Returns: CppTypeTreeNode for CppObj.

Note: Return value may be nullptr if CppObj does not represent a valid type.

Definition at line 127 of file cppprog.h.

Member Data Documentation

◆ cppObjToTypeNode_

CppObjToTypeNodeMap CppProgram::cppObjToTypeNode_

private

Definition at line 119 of file cppprog.h.

◆ cppTypeTreeRoot_

CppTypeTreeNode CppProgram::cppTypeTreeRoot_

private

Repository of all compound objects arranged as type-tree.

Definition at line 118 of file cppprog.h.

◆ fileAsts_

CppCompoundArray CppProgram::fileAsts_

private

Array of all top level ASTs corresponding to files.

Definition at line 117 of file cppprog.h.

The documentation for this class was generated from the following files:

pub/cppprog.h
src/cppprog.cpp
